Challenger 607 Vacuum Pump

NVE 607 Pro Challenger Pump

In Stock And Ready To Ship Today!! $5271.00

At Meters, Inc. we are your source for a variety of pumps designed for use in petroleum and septic industry applications. We have your pumping equipment needs covered with the NVE Challenger 607 Vacuum Pump. This pump includes efficient and durable features that provide for superior operation in the field.

Our NVE Pro Challenger 607 Vacuum Pump – Features and Benefits

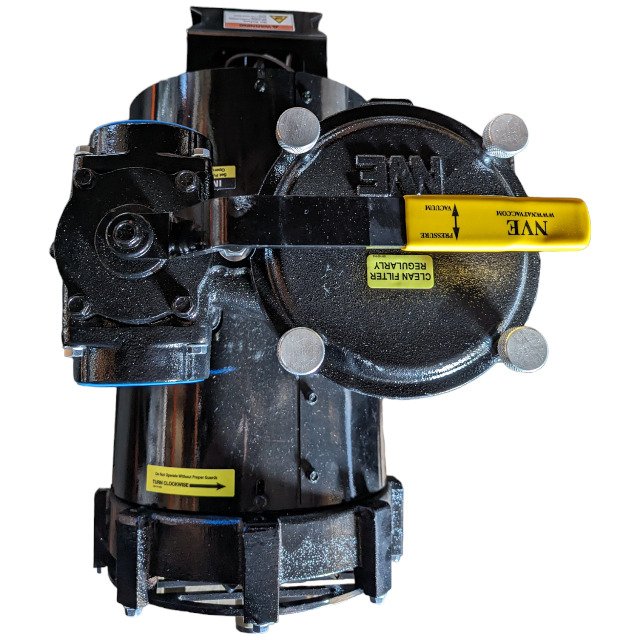

The NVE 607 Pro Challenger Pump

• • Ductile iron housing (tough like steel).
  • The NVE bi-rotational, four port oil pump is exclusive to our
  “oil management system” delivering the precise amount of oil
  required for any job. Easily adjustable to 5-24 ounces per hour.
  • Rugged braided stainless steel oil delivery lines
  • Vacuum relief boss
  • Vane flush port with valve
  • Vane wear inspection port
  • Integral, easily accessible, and cleanable stainless steel final
  filter
  • Proven crash protection allowing all major components to
  survive a catastrophic failure
  • Remote mount 5 quart see through oil tank for constant oil
  level monitoring
  • Thermometer to monitor exhaust temperature
  • Multiple drive options (gearbox, belt, hydraulic, and direct)

  • Two year warranty against manufacturer defect

  • Designed, built, and supported in the USA

• AIR FLOW – FREE AIR 380 CFM
  •MAXIMUM VACUUM 29” HG
  •MAXIMUM PRESSURE 30 PSI
  •OPERATING RANGE – RPM 1250
  •HP REQUIRED @ VACUUM 25
  •HP REQUIRED @ 20 PSI 28
  •PORTING SIZE 3″
  •SHAFT SIZE (3/8” KEY) 1 1/2″
  •PUMP DIMENSIONS L 29 5/8” W 14 9/16” H 32 11/16”
  •APPROXIMATE WEIGHT 390 LBS

The Challenger 607 Vacuum Pumps maximum allowable operating vacuum will vary depending on R.P.M., ambient
temperature, altitude and time running. The basic principle to keep in mind is – faster R.P.M.,
higher air temperature and longer run time all equal more heat in pump. When installing
an NVE 607 pump we recommend a normal R.P.M. of 1250. Other speeds are ok as long as
exhaust gas temperatures read on the supplied thermometer do not exceed 380 degrees F.

• Tough (like steel) ductile iron housing

• Four port bi-rotational oil pump provides the precise quantity of oil for the job

• Oil delivery lines manufactured from rugged braided stainless steel

• Adjustments are easy – up to 5-24 ounces ea. hour

• Vane flush port valve

• Vacuum relief loss

• Easily to access, essential, stainless steel final filter

• Vane wear inspection port

• Continual monitoring of oil level through remote mount sees through 5-quart oil tank

• Reliable crash protection protecting all major components from catastrophic failure

• Various drive options (belt, gearbox, direct, and hydraulic)

• Thermometer to track the temperature of exhaust

• Designed, manufactured, and supported in the USA

• Housing lifetime warranty against cracking

• Two-year warranty against manufacturing defects

Get the NVE 607 Challenger Vacuum Pump

To learn more about the  NVE 607 Pro Challenge Pump we offer for your petroleum processing needs, give us a call today at 734.532.4124.
