Dixon Bayco API Load/Unload Valves w/ Fixed Handle

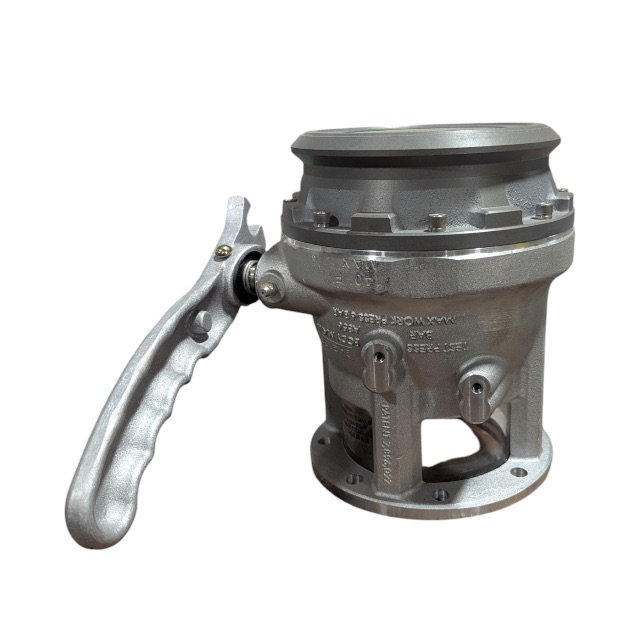

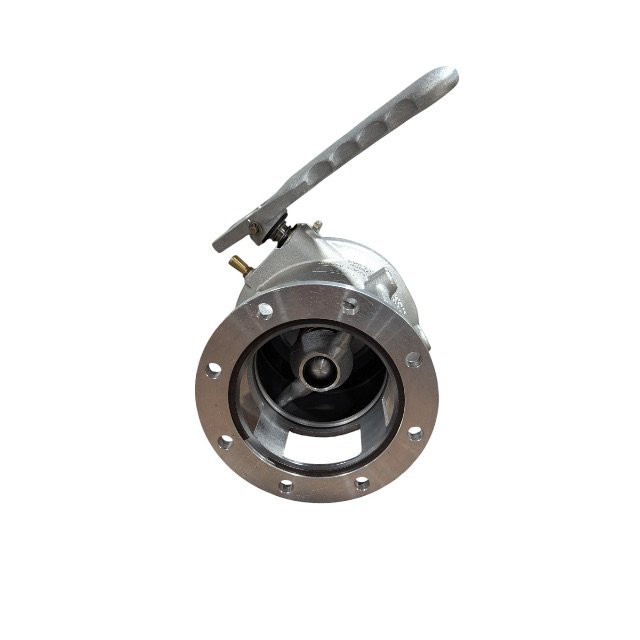

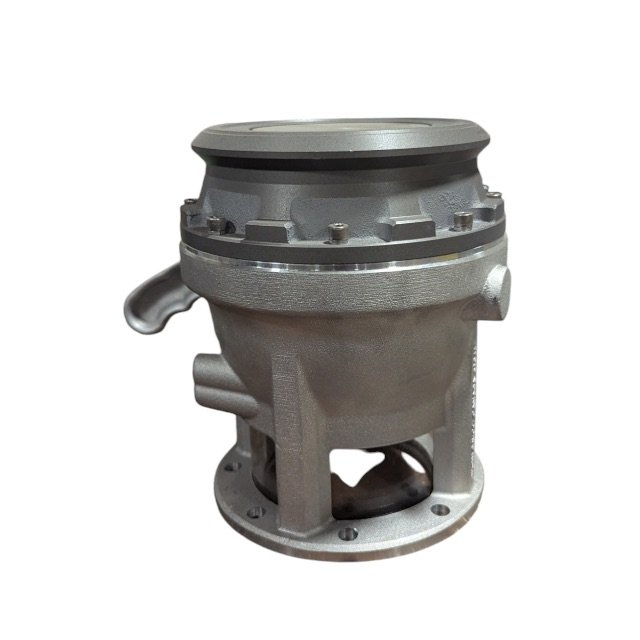

Dixon 5204SFI - API Load/Unload Valve
Application
API valves are typically mounted to the piping below each tank compartment for bottom loading and unloading of petroleum tankers, using the built-in 4" TTMA flange connection.
Load/unload (with a handle) which permits both terminal loading and fuel unloading through the valve
Features
Unique fluid flow sight level.
Ergonomically curved handle operates on a short 62 degree stroke.
Any required maintenance is simplified, Dixon Bayco® API Valves can be completely rebuilt without the need to remove the valve from the tanker.
The nose ring is made of anodized hardcoat aluminum, which provides years of trouble-free service. The nose ring can be rotated to provide a fresh connection surface.
Biofuel compatible, up to E100 (100% ethanol) and B100 (100% biodiesel)
Maximum working pressure: 75 PSI
Units with sight glass maximum: 140°F (60°C)
Materials
Aluminum body, and handle, 1 anodized hard coat aluminum nose ring, stainless steel hardware, Baylast™ 1, FKM 1 and PTFE seals, 1 nylon sight glass, 1 acrylic full body sight glass
Approvals
Manufactured to American Petroleum Institute standard API RP-1004, which allows for positive connection to drop adapters and rack couplers such as the Dixon Bayco 5300/5400-Series rack coupler.
Temperature Range
-40°F to 140°F (-40°C to 60°C)
Fuel Compatibility
Gasoline and diesel, up to E100 and B100 biofuels
