Liquid Control LC P9561 M-5
Product Price: 1,350
Core Price: 300
Total Price: $1,650.00

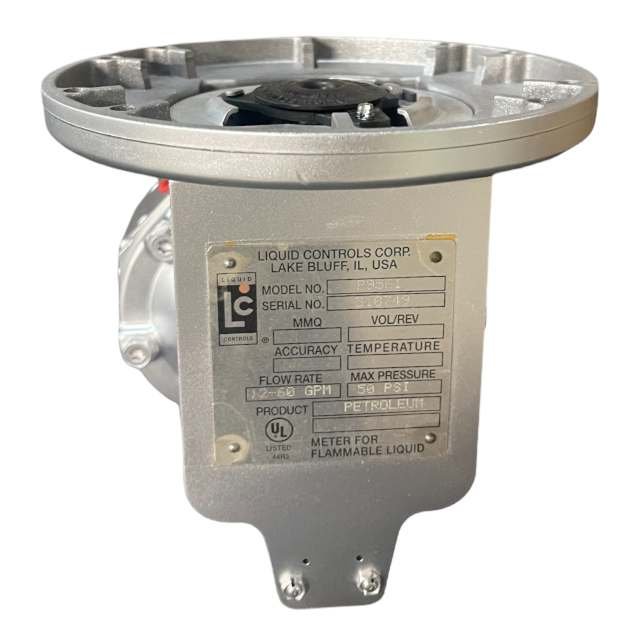

LC P9561 M-5 positive displacement (PD) flowmeters provide the industry’s most time-proven record of superior accuracy, performance, and long-term durability in custody transfer of refined and alternative fuels.
The simplicity of design and construction, together with sustained accuracy, is why customers prefer Liquid Controls meters in various fluid custody transfer applications worldwide.
DOES NOT COME WITH ADJUSTER can be added
1.5″ Flange, 60 GPM (227 LPM), 150 psi (10.3 bar, 1034 kPa)
Direct To Pulser
Remanufactured
New Gaskets and Viton O- Rings
Painted with Metallic Oil Based Rust-oleum
Triple-checked on test bench
Product Price: 1,350
Core Price: 300
Total Price: $1,650.00
LC P9561 M-5 positive displacement (PD) flowmeters provide the industry’s most time-proven record of superior accuracy, performance, and long-term durability in custody transfer of refined and alternative fuels.
The simplicity of design and construction, together with sustained accuracy, is why customers prefer Liquid Controls meters in various fluid custody transfer applications worldwide.
DOES NOT COME WITH ADJUSTER can be added
1.5″ Flange, 60 GPM (227 LPM), 150 psi (10.3 bar, 1034 kPa)
Direct To Pulser
Remanufactured
New Gaskets and Viton O- Rings
Painted with Metallic Oil Based Rust-oleum
Triple-checked on test bench
Product Price: 1,350
Core Price: 300
Total Price: $1,650.00
LC P9561 M-5 positive displacement (PD) flowmeters provide the industry’s most time-proven record of superior accuracy, performance, and long-term durability in custody transfer of refined and alternative fuels.
The simplicity of design and construction, together with sustained accuracy, is why customers prefer Liquid Controls meters in various fluid custody transfer applications worldwide.
DOES NOT COME WITH ADJUSTER can be added
1.5″ Flange, 60 GPM (227 LPM), 150 psi (10.3 bar, 1034 kPa)
Direct To Pulser
Remanufactured
New Gaskets and Viton O- Rings
Painted with Metallic Oil Based Rust-oleum
Triple-checked on test bench
Liquid Control Flow Meter
At Meters, Inc., we offer multiple types of remanufactured meters produced by various brands to meet your petroleum measurement and processing requirements, including Liquid Control flow meters, MS, register and air eliminator. Below we provide details about the LC M5 meter.
Liquid Control M5 Meter
This liquid control flow meter’s rotary motion positive displacement in combination with a veeder root mechanical register without internal pulsers is a highly durable, precision mechanical meter registered designed and manufactured for various types of liquid delivery and inventory processes.

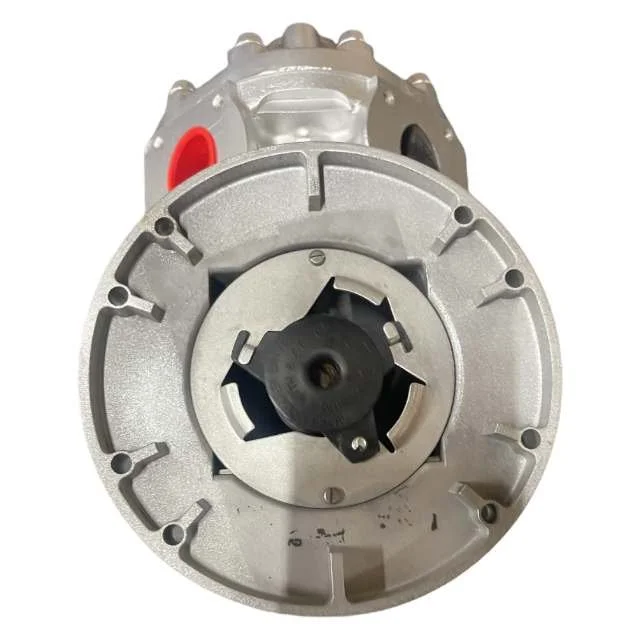

Liquid controls M5 meters offer exceptional accuracy providing measurements. The liquid control flow meter includes a housing with three synchronized rotors that do not feature metal-on-metal contact. An immobile boundary of liquid provides hydraulic sealing without the need for mechanical parts that provide a wiping action.
The LC M5 meter has a 150 psi/10.5 BAR rating and a 40 GPM capacity. It features left to right flow, 1-1/2″ flange size, and Viton O-rings. Pump pressure or gravity flow may be used to achieve low-pressure drop.
Due to no metal-on-metal surface contact, there is no wear, ensuring sustained accuracy of measurements (with little diminishing of the accuracy over time), fewer required calibrations, and an extended service life. The unit has been remanufactured to factory specifications and checked three times for unequaled quality.
Get an LC M5 Meter for Your Petroleum Applications
For more information about the liquid control flow meter options we offer for your petroleum production and processing applications, give us a call today at 734.532.4124 or complete our contact form and leave us a message.
